| Item | Part nr. | Description |
| (old part nr.) | ||

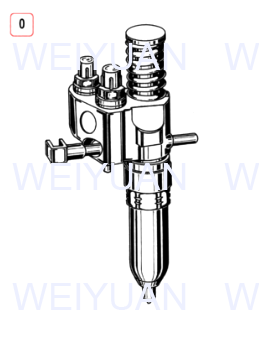

| 0 | D5228535 | Injector assembly 35 offset l.c. |
| D5228560 | Injector assembly 40 offset l.c. | |
| D5228510 | Injector assembly 45 offset l.c. | |
| D5228590 | Injector assembly S40 offset l.c. | |
| D5228580 | Injector assembly S45 offset l.c. | |
| D5228550 | Injector assembly S50 offset l.c. | |
| D5228478 | Injector assembly 55E offset h.c. | |
| D5228521 | Injector assembly S55 offset l.c. | |
| D5228480 | Injector assembly 60E offset h.c. | |
| D5228505 | Injector assembly HE6 offset h.c. | |
| D5228715 | Injector assembly 6S8 offset l.c. | |
| D5228566 | Injector assembly S65 offset l.c. | |
| D5228470 | Injector assembly HV7 offset h.c. | |
| D5228435 | Injector assembly HV8 offset h.c. | |
| D5228522 | Injector assembly S60 offset l.c. | |
| D5228523 | Injector assembly S70 offset l.c. | |
| D5228524 | Injector assembly S80 offset l.c. | |
| D5228525 | Injector assembly S90 offset l.c. | |

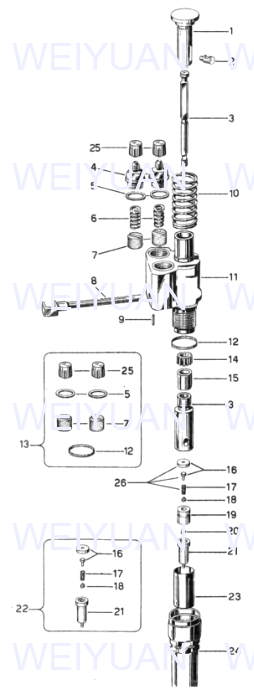

| 1 | D5228104 | Follower injector |
| 2 | D5228608 | Pin, injector stop |
| 3 | D5228530 | Plunger & bushing 35 |
| D5228552 | Plunger & bushing 40, S40 | |
| D5228495 | Plunger & bushing 45, S45 | |
| D5228126 | Plunger & bushing S50 | |
| D5228477 | Plunger & bushing 55E | |
| D5228528 | Plunger & bushing S55 | |
| D5228474 | Plunger & bushing 60E | |
| D5228306 | Plunger & bushing HE6, 6S8, S60 | |
| D5228569 | Plunger & bushing S65 | |
| D5228304 | Plunger & bushing HV7, S70 | |
| D5228101 | Plunger & bushing HV8, S80 | |
| D5228549 | Plunger & bushing S90 | |
| 4 | D5228588 | Cap, injector filter |
| 5 | D5226186 | Gasket, filter cap |
| 6 | D5226415 | Spring (not required. Use D5228587 w/D5228588) |
| 7 | D5228587 | Element, filter |
| 8 | D5226719 | Rack assembly |
| 9 | D5226416 | Dowel, injector body (included into D5227931) |
| 10 | D5228739 | Spring, injector plunger |
| 11 | D5228509 | Body assembly (offset l.c.) |
| 12 | D5234281 | Ring, injector seal |
| D5229167 | ||
| 13 | D5229649 | Filter service kit |
| 14 | D5226400 | Gear, injector |
| 15 | D5226567 | Retainer, gear |
| 16 | D5228316 | Valve (D5228308) & seat (D5228106) assembly |
| 17 | D5227210 | Spring, injector valve |
| 18 | D5227318 | Stop, injector valve |
| 19 | D5228294 | Cage, injector valve |
| 20 | D5226411 | Valve, injector check |
| 21 | D5228473 | Tip S40, S45, S50, 55E, S55, 60E, HE6, S60, S65 |
| D5228436 | Tip 35, 40, 45, 6S8 | |
| D5228554 | Tip S70, S80, S90, HV7, HV8 | |
| 22 | D5228491 | Tip kit S40, S45, S50, 55E, S55, 60E, HE6, S60, S65 |
| D5228443 | Tip kit 35, 40, 45, 6S8 | |
| D5228312 | Tip kit S70, S80, S90, HV7, HV8 | |
| 23 | D5228109 | Deflector, injector spill |
| 24 | D5228102 | Nut, injector |
| 25 | D5226414 | Cap, shipping |
| 26 | D5228313 | Valve, kit |
