Delivery Valve

  • Isobaric valve
Isobaric valve

Isobaric valve

Details

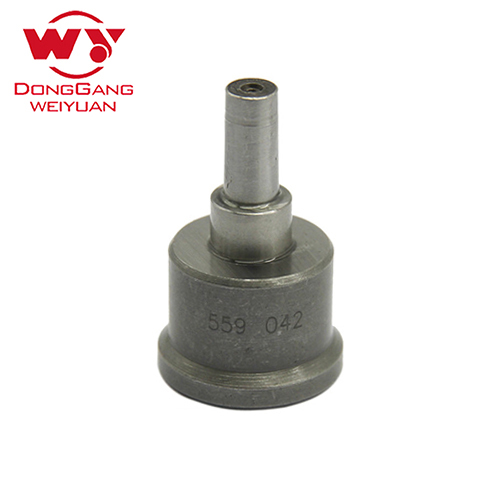

What is an isobaric valve? The isobaric valve is a one-way valve. Under the action of spring pressure, the upper conical surface of the valve is closely matched with the valve seat. Its function is to isolate the high pressure oil pipe from the upper end of the plunger when the supply is stopped, to prevent the oil in the high pressure oil pipe. Pour into the fuel injection pump. The lower part of the oil delivery valve has a cross section that can be guided and passed through diesel. There is a small cylindrical surface under the cone surface of the oil discharge valve, which is called the pressure relief belt. Its function is to reduce the oil pressure in the high pressure oil pipe rapidly when the oil supply is finished, and to avoid dripping oil at the injection hole. When the annulus falls into the valve seat, the upper volume is quickly increased, the pressure is rapidly reduced, and the spray is quickly stopped. During operation, under the action of the cam and the plunger spring on the camshaft of the fuel injection pump, the plunger is forced to reciprocate up and down, thereby completing the pumping task, and the pumping process can be divided into oil-fueling-returning oil. Stages.
出油阀偶件 DELIVERY VALVE
系列Serie
序号
参 考 编 号
REFERENCE NO
公 司 编 号
CO.NO
刻  号
MARK
适  用  机  型
FIT  ENGINT  TYPE
1
00813-NM75NM75
2
00813-A9PJA9/PJ
3
00813-0051051
4131110-052000813-61S1161S1三菱MITSUBISHI 6DB10 6DB12 4D130(PC120-3)
5
00813-1611161/1
6
00814-90092559/009等压阀
7
00814-90452559/045上柴SHANG CHAI D6114-280PS(等压阀)
82559 03500814-90352459/035等压阀
9
00814-0097097
101 418 512 20300815-2203112/203MW
111 418 512 20700815-2207112/207MW
121 418 512 21200815-2212112/212MW
131 418 512 22100815-2221112/221MW
141 418 512 22500815-2225112/225康明斯CUMMINS 6CT8.3-245PS(MW)
151 418 512 23400815-2234112/234MW
161 418 512 23300815-22333512/233
17
00815-2208512-208
18



19
00816-0PW2PW2锡柴XI CHAI 大柴DA CHAI DA6110/125E(等容阀)
20
00816-0105105等容阀
21
00816-0802802
22
00816-0999999上柴SHANG CHAI等容阀
23
00816-000RR等容阀
24
00816-00PDPD等容阀
25
00817-0PW2PW2等压阀
26
00817-0PA9PA(9)等压阀
27
00817-PA10PA10等压阀
28T10000818-T100
T100
29
00818-02900290
30
00818-41504150
31090140-222000819-0222222日野HINO H07D
32
00819-00GLGL三菱MITSUBISHI 6D14.2A
33090140-120000820-0120120
34
00821-50H150H1久保田KUBOTA 4106-205
351 40110-392000821-0K19K19
36
00821-00K7K7
37
00821-050150/1a
38
00821-00K1K1
39132110-0120
706633
00822-030130/1PERKINS
40
00822-030830/8
41
00823-001212
42
00823-002828
43
00823-005151
44
00823-005252
45
00823-005555
46
00823-068551(685)
47
00823-F167F167
48



49131110-062000824-61S2161S2DH100 DA120 DA220 DA640T
50
00825-0TXZTXZ
51
00825-0KDVKDV
52
00826-0001
 卡玛斯KAMZ
53
00827-F107F107
54



55
00828-00LWLW
56
00828-0LDVLDV
57
00829-0003卡玛斯III
58
00829-F158F158
59
00829-F159F159MAZZ
60
00829-F160F160BELAROS
61
00829-F161F161
62
00829-F168F168
631 418 502 01500832-20151502/015
641 418 502 01300833-2013502/013
6550566000834-5660505660
66
00835-0166DEUTZ
67
00836-0903903
68
00837-0114114
69
00837-0116116
70
00838-16921/692
71
00839-XB07DV CXB07
72
00840-DV24DV24
73
00840-DV83DV83g
74
00841-F121F121
75
00842-S195S195
76
00843-0771771
77
00844-46AA46AA
78
00845-F178F178
79
00845-0IWIIWI
80
00846-0T30T30
