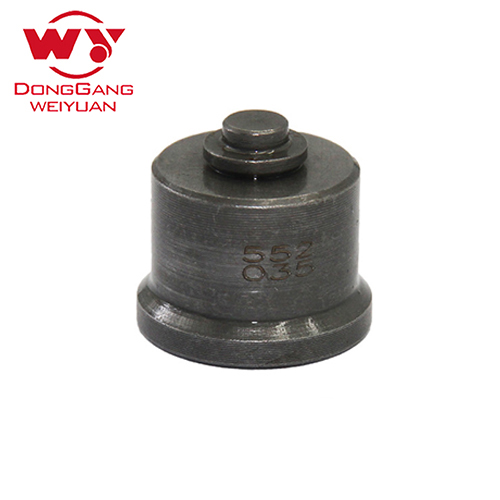

Delivery Valve

  • P series oil delivery valve
P series oil delivery valve

P series oil delivery valve

Details

What is the delivery valve? The oil discharge valve is a one-way valve. Under the action of spring pressure, the upper conical surface of the valve is closely matched with the valve seat. The function is to isolate the high pressure oil pipe from the upper end of the plunger when the supply is stopped, and prevent the oil in the high pressure oil pipe. Pour into the fuel injection pump. The lower part of the oil delivery valve has a cross section that can be guided and passed through diesel. There is a small cylindrical surface under the cone surface of the oil discharge valve, which is called the pressure relief belt. Its function is to reduce the oil pressure in the high pressure oil pipe rapidly when the oil supply is finished, and to avoid dripping oil at the injection hole. When the annulus falls into the valve seat, the upper volume is quickly increased, the pressure is rapidly reduced, and the spray is quickly stopped. During operation, under the action of the cam and the plunger spring on the camshaft of the fuel injection pump, the plunger is forced to reciprocate up and down, thereby completing the pumping task, and the pumping process can be divided into oil-fueling-returning oil. Stages.
出油阀偶件 DELIVERY VALVE
系列Series P

序号

参 考 编 号
REFERENCE NO

公 司 编 号
CO.NO

刻  号
MARK

适  用  机  型
FIT  ENGINT  TYPE

1

134110-0120

00812-00P1

P1

尼桑Nissan CKL20
川崎Kawa saki(d852) PD6 S6D125

2

134110-0520

00812-00P4

P4

五十铃ISUZU 8PE1/110PE1

3

134110-0920

00812-00P8

P8

尼桑Nissan PD6T

4


00812-0P11

P11


5

134110-1320

00812-0P12

P12


6

134110-1420

00812-0P13

P13

尼桑Nissan RD8/RD8T 日野HINO EP100T EK200 EK100(ZM403 ZM443)

7

134110-1720

00812-0P16

P16

尼桑Nissan WB520

8

134110-2420

00812-0P23

P23

日野HINO EF750

9

134110-4120

00812-0P40

P40


10

134110-4220

00812-0P41

P41

五十铃ISUZU 6RB1T 6SD1T E120 6RB1 EX400

11

134110-4420

00812-0P43

P43

三菱MITSUBISHI 6D22T

12

134110-4520

00812-0P44

P44

三菱MITSUBISHI 8DC8 8DC9

13

134110-5020

00812-0P49

P49

小松KOMATSU

14

134110-5320

00812-0P52

P52

五十铃ISUZU 6SD1 6RB1

15

134110-5420

00812-0P53

P53

尼桑Nissan RE8 RE8/RE10

16

134110-6320

00812-0P62

P62

日野HINO EK100(ZM443)

17

134110-7020

00812-0P69

P69


18


00812-0P71

P71


19

134110-7520

00812-0P74

P74

五十铃ISUZU 12PC1

20

134110-7820

00812-0P77

P77


21

134157-6420

00812-P143

P143

大宇DAEWOO D1146T D2366T

22


00812-0126

126


23

134160-2920

00812-026P

26P


24


00812-0143

143


25


00812-0146

146


26


00812-0722

722


27


00812-0726

726


28


00812-0825

825


29

2 418 552 027

00812-2027

027

斯太尔STEYR WD615
奔驰BENZ OM442 OM423

30

2 418 552 003

00812-2003

052/003

奔驰BENZ OM402

31

2 418 552 007

00812-2007

052/007


32

2 418 554 051

00812-2051

052/051


33

2 418 552 065

00812-2065

052/065


34

2 418 552 069

00812-2069

052/069

奔驰BENZ OM442A

35

2 418 552 103

00812-2013

052/103


36

 2 418 552 157

00812-2157

052/157


37


00812-4001

054/001


38

2 418 554 043

00812-4043

554/043


39

2 418 554 051

00812-4051

554/051


40

2 418 554 077

00812-4077

554/077


41


00812-86P1

286P1


42


00812-25PD

825PD


43

2 418 552 019

00812-2019

2552/019


44

2 418 552 035

00812-2035

2552/035


45

2 418 554 035

00812-4035

2554/035


46

2 418 455 047

00812-5047

2455/047
